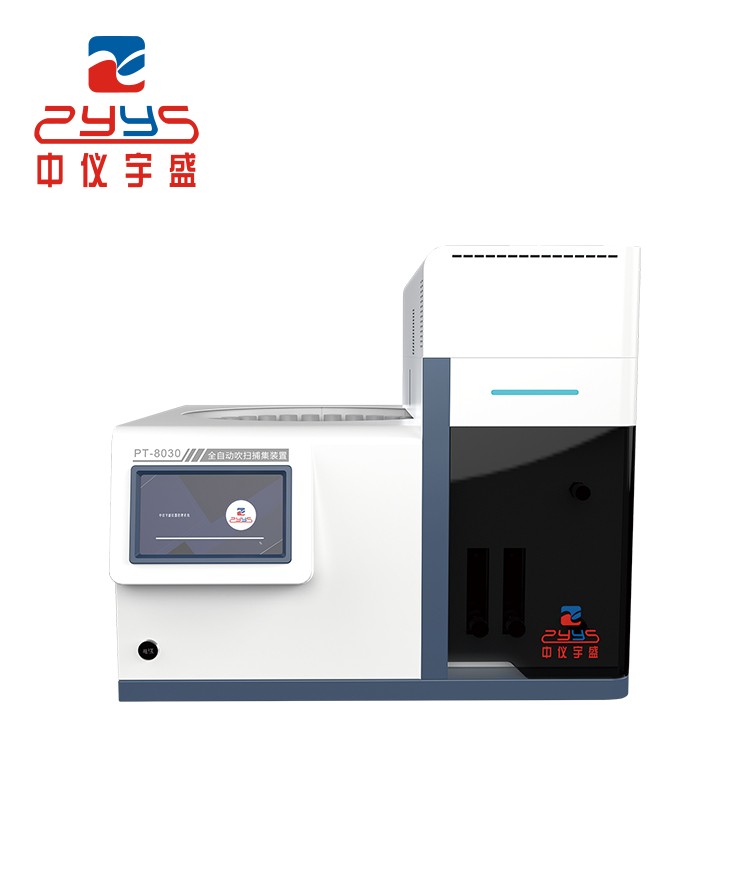

PT-8030 automatic purge and trap device

Host functions

1、Equipped with a water removal device: it can prevent water vapor from entering the capture pipe and reduce the impact of water vapor on GC and GCMS

2、Sample disk: Edge top pressure rotary disk injection mold set, 30 sample grades, fast injection speed, and accurate control

3、Integrated water removal and capture module, achieving room temperature and bidirectional water removal, with a water removal efficiency of>97%

4、Multi way valve injection module, reducing sample residue, improving recovery rate, and improving equipment life

5、Modular design of control, independent operation of functions, convenient maintenance and upgrading

6、High temperature valve box, transmission pipeline, water removal trap, and trap trap are individually controlled for accurate temperature control

7、Sample automatic mixing function, with a mixing speed of 50 rpm to 500 rpm that can be set steplessly

8、7-inch touch screen with clear interface and convenient operation

9、Supports separate operation of desorption injection and baking functions, facilitating daily equipment maintenance

Microcomputer program control

10、Capable of setting method parameters, displaying working status in real-time animation, and running parameters

11、The method can be edited and automatically realizes functions such as blowing, trapping, desorption, injection, and baking

12、Injection valve, sample transfer tube, water trap, and capture tube desorption zone, all four channels are individually heated and temperature controlled

13、After the method and queue settings are completed, it supports one click fully automatic operation
